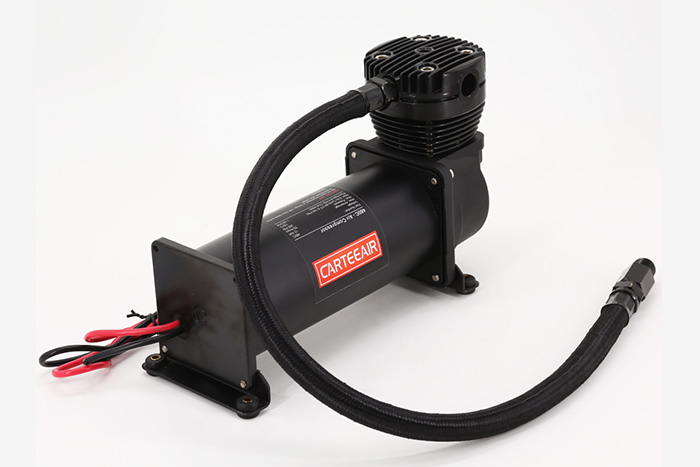

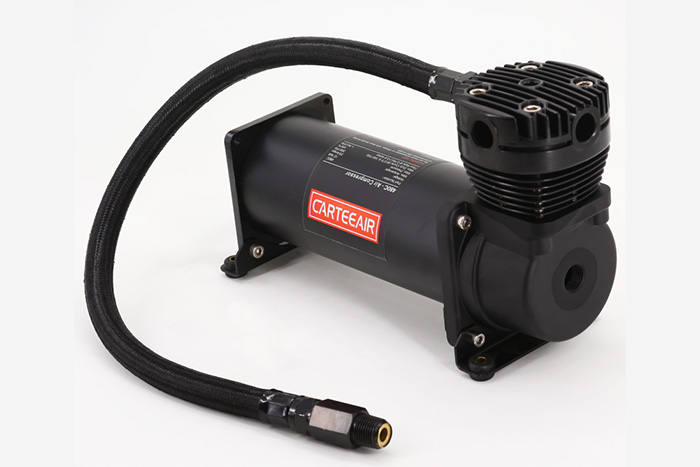

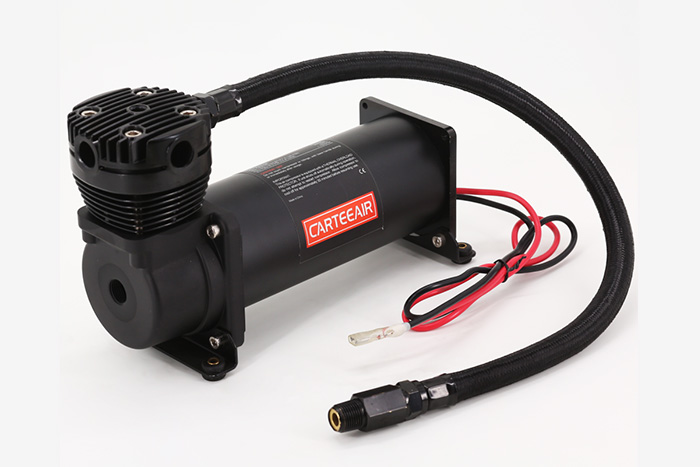

480C air compressor is a truly rated, 200 PSI-rated compressor.
It features our patented head design, a standard 3/8” stainless steel braided leader hose with 3/8” NPT inline check valve and insulated wiring.
Features:
With automatic reset thermal overload protector.
Double filter, remote installation.
Heavy-duty, direct-drive powerful motor.
Oil-free design, save your money and energy.
Durable air pump and motor with low noise, provide quiet work and long life.
The motor is equipped with a self-restoring temperature protector
Heavy-duty, direct-drive powerful motor.
Oil-free, shock pad, double filter, remote installation.
High Strength Stainless Steel Gas Valve.
High Performance Wear Resistant Piston Ring.
Anodized aluminum cylinder.
Durable air pump and motor with low noise, provide quiet work and long life.
moisture and dust resistant.
Heat-resisting covered steel rubber tube with one-way valve and rotary joint.
13886501872
13809667059
SPECIFICATIONS:
Motor Voltage:12 Volts
Max. Current Consumption: 23 Amps
Motor Type:Permanent
Magnetic
Horsepower:1/4
Max. Working Pressure:200 PSI
Max. Duty Cycle (@ 72oF & 100 PSI):100%
Minutes On/Off (@ 72oF & 100 PSI):Continuous
Max. Restart Pressure:200 PSI
Max. Ambient Temperature:158F
Min. Ambient Temperature:-40F
Auto. Reset Thermal Protection:Yes
flow rate: 1.76 cfm @ 0 psi
intermittent pressure: 300 psi
ingress protection rating: ip67
cylinder: Φ40mm

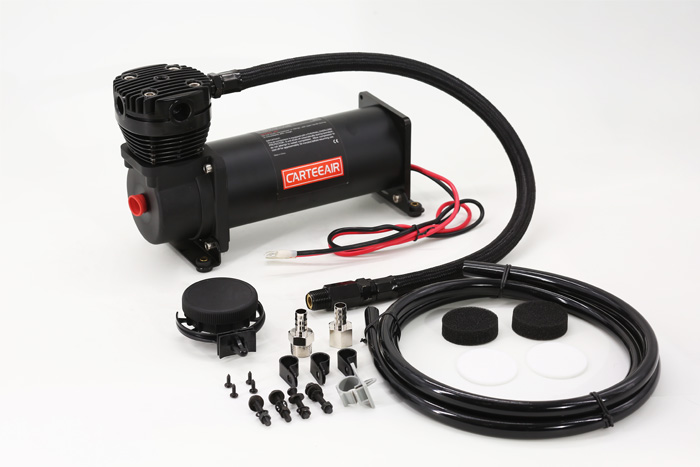

Accessories:
mounting hardware (nuts, bolts, locking washers)
vibration isolators
remote mount air filter assembly
two replacement air filter elements
air line for remote mount air filter installation
stainless steel braided leader hose
check valve
PERFORMANCE DATA:
| PSI | CFM | A | BAR | LPM | A |
| 0 | 1.76 | 10 | 0 | 50 | 10 |
| 10 | 1.66 | 12 | 1 | 46 | 13 |
| 20 | 1.59 | 14 | 2 | 43 | 14 |
| 30 | 1.52 | 15 | 3 | 40.5 | 17 |
| 40 | 1.45 | 16 | 4 | 38.5 | 18 |
| 50 | 1.41 | 17 | 5 | 35.5 | 19 |
| 60 | 1.34 | 18 | 6 | 33 | 19 |
| 70 | 1.27 | 18 | 7 | 31.5 | 19 |
| 80 | 1.2 | 19 | 8 | 29.5 | 20 |
| 90 | 1.16 | 19 | 9 | 27 | 20 |
| 100 | 1.13 | 19 | 10 | 25 | 19 |
| 110 | 1.06 | 20 | 11 | 23 | 19 |
| 120 | 1.02 | 20 | 12 | 20.5 | 19 |
| 130 | 0.95 | 20 | 13 | 18 | 18 |
| 140 | 0.92 | 19 | 14 | 15.5 | 18 |
| 150 | 0.85 | 19 | |||
| 160 | 0.81 | 19 | |||
| 170 | 0.74 | 19 | |||
| 180 | 0.7 | 19 | |||
| 190 | 0.63 | 18 | |||
| 200 | 0.56 | 18 | |||
*Voltage: 13.8 V
High pressure pump suit for automobile air suspension, air horn, sweeper, air vending machine, pneumatic control door, pneumatic seat, pneumatic brake assist system, air lock, agricultural machinery, medical equipment, industrial equipment, cleaning equipment, etc.
air suspension compressor
quiet air compressor heavy duty air pump
oil free compressor air ride compressor
air horn compressor portable air compressor pump
air suspension compressor pump car suspension compressor
